ELIWELL REGULATOR IS974LX

SKU: IS974LX

You must to view prices.

Usually ships in 1 to 2 daysDetails

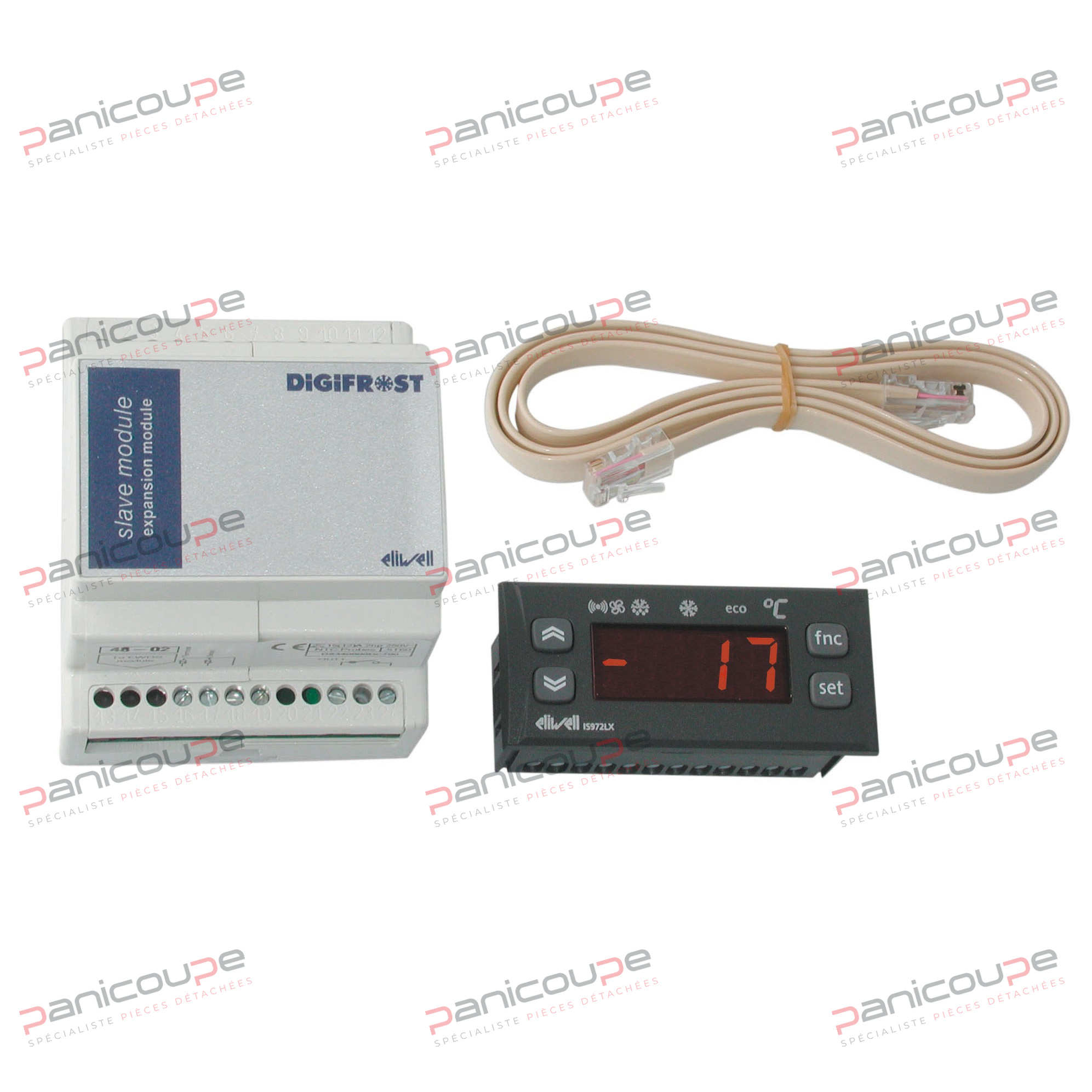

With defrost function using either a heating element or hot gases. (Defrost end time set by temperature). Fan delay (for freezing) it-frm.com. Temperature control range from -55 to +110 °C. 1 setpoint. 1 telephone cable output connected to the SLAVE EWEM243, which has 4 configurable relay outputs (1 x 15 A, 1 x 10 A, and 2 x 8 A). 3-digit display. IS974 Front panel 32 x 74 mm. Depth 67 mm. SLAVE EWEM243 Front panel 70 x 85 mm. Depth 61 mm. 230 V power supply via the SLAVE. Supplied with 2 x 1.5 m NTC probes, 1 connection cable, and 1 SLAVE power box.

Technical Specifications

Type of probe	NTC, PTC
Nb of contacts	4
including inverters	1
including NO	3
Regulator operation	Cold
Nb of probes	2
Delivered probes	2 NTC de 1,5m
Compressor	15
Defrosting	10
Ventilation	8
Alarm	8
To	8A*
Options	Electric or hot gas defrost
Ergonomics	To keys
Min. temperature	-55
Max. temperature	140
Power supply	230 V
Connections	Screw terminal block
Assembly cut-out	71*29 mm
Width	74
Height	32
Internal diameter	30
Minimum temperature (use)	-5
Max. temperature (use)	55
IP protection	65
Component manufacturer	ELIWELL
