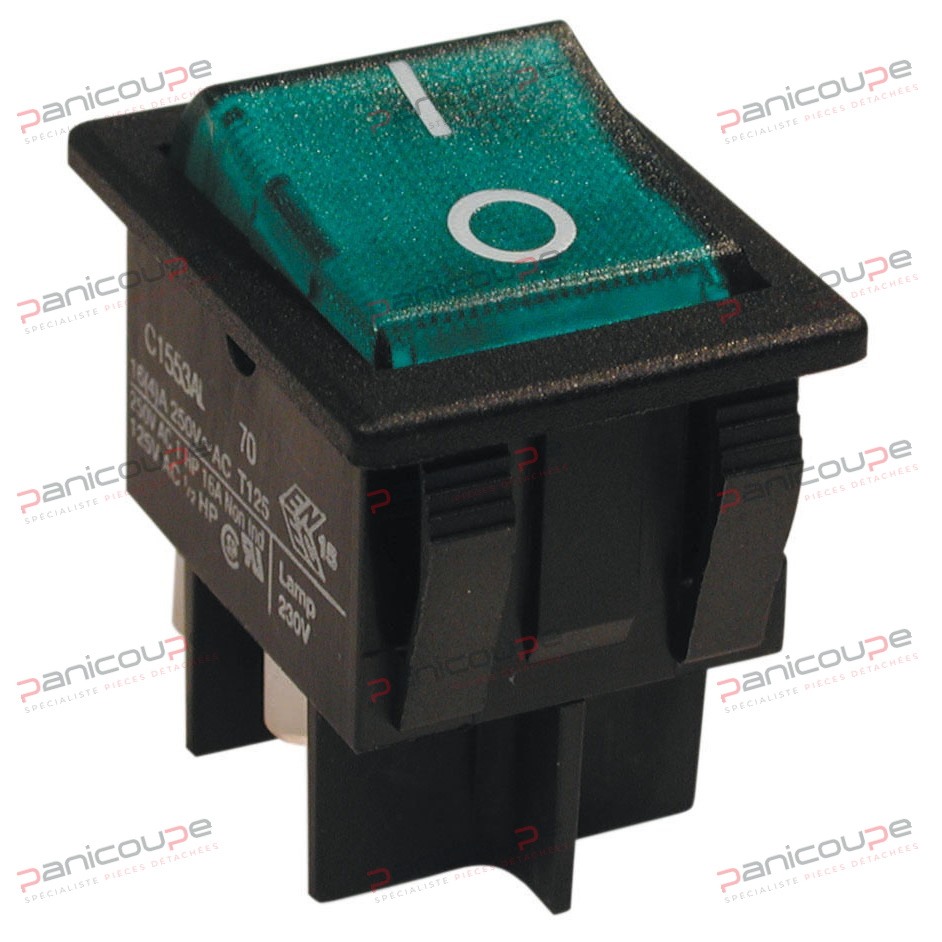

TOGGLE SWITCH

SKU: INT300LV

You must to view prices.

Usually ships in 1 to 2 daysDetails

Snap-in from the front. 6.35 mm tab connection. Engraved 0/1. Black polyamide body and button. Type 16 A/250 V. Cutout 30.2 x 22.2 mm.

Illuminated bipolar model, green, 230 V lamp.

Technical Specifications

Nb of contacts	2
including NO	2
Single or double	Simple
Power supply	230 V
Connections	6,35 mm lugs
Maximum intensity	16 A
Fastening method	Recessed, From the front
Assembly cut-out	30*22 mm
Action	Maintained
Bright	YES
Marking	0 / I
Nb of positions	2
Functions	ON - OFF
Color	Green
Form	Rectangular
Type of equipment	Ovens, Dishwashers, Glass washer
Compatibility	CAPLAIN, ELFRAMO
