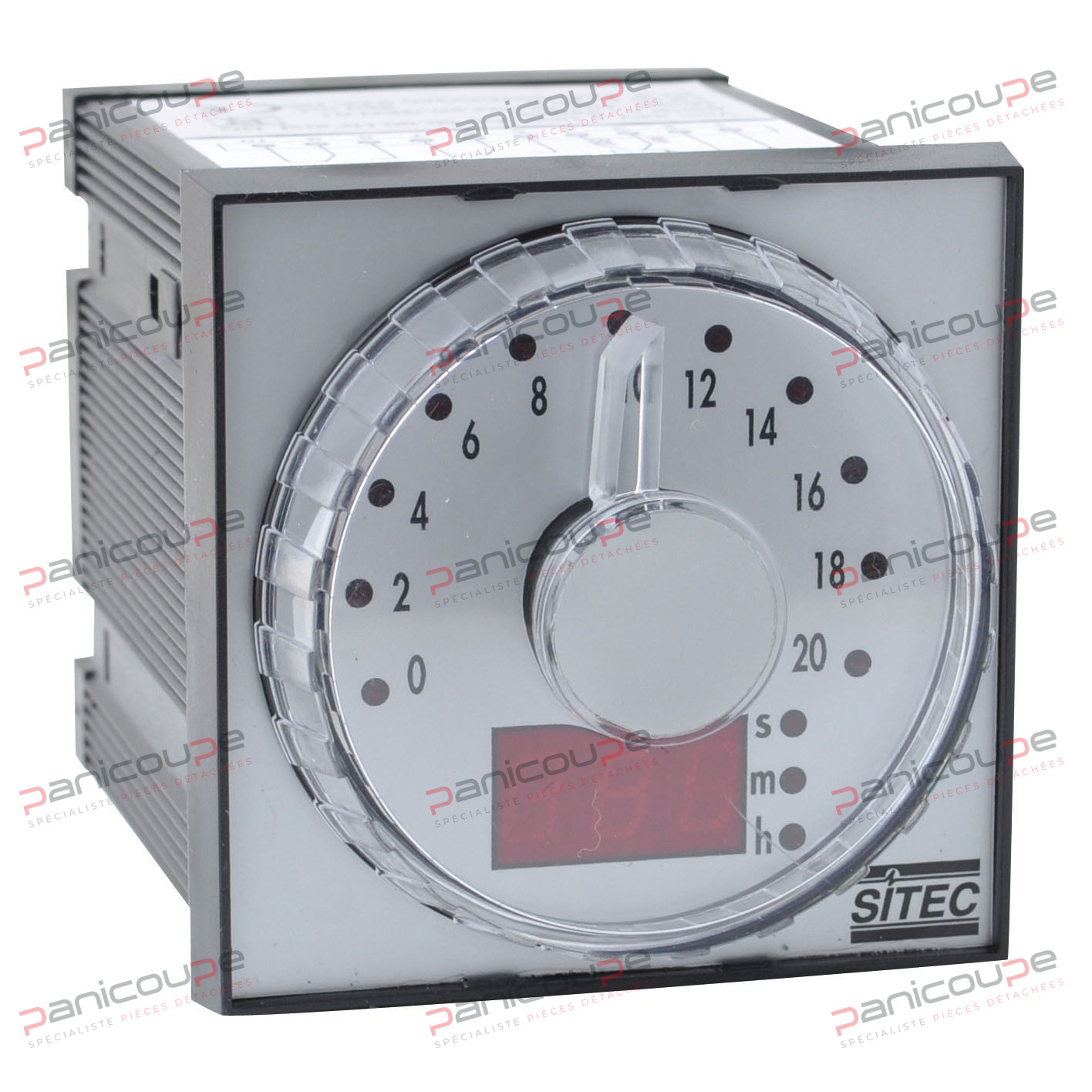

TIMER SITEC TIM7202420S

TIM7202420S
You must to view prices.
Usually ships in 1 to 2 daysDetails
Graduated dial from 0 to 20, 3 ranges: seconds, minutes, or hours. 1 LED in front of each digit. 1 three-digit digital display. 24 VAC/DC - 50/60 Hz power supply. 1 start input + 1 counting memory input. 2 x 16A changeover relays. Dimensions: 72 x 72 x 80 mm (110 mm with contacts and dial). Panel cutout: 68 x 67 mm. Connection via 11-pin undecal socket. Specific model for spiral mixers.
  • Technical Specifications
Nb of contacts 2
including inverters 2
Timer type Electrical
Time range 10 h, 10 min, 10 s, 20 h, 20 min, 20 s, 30 h, 30 min, 30 s, Base 1, Base 3
Power reserve YES
Start function YES
Power supply 24 Vac, 24 Vdc
50 Hz YES
60 Hz YES
Maximum intensity 16 A
Fastening method Recessed
Assembly cut-out 68*68 mm
Width 72 mm
Height 72 mm
Internal diameter 80 mm
Type of equipment Kneaders, Spiral mixer
Component manufacturer SITEC
Compatibility CAPLAIN, VMI
