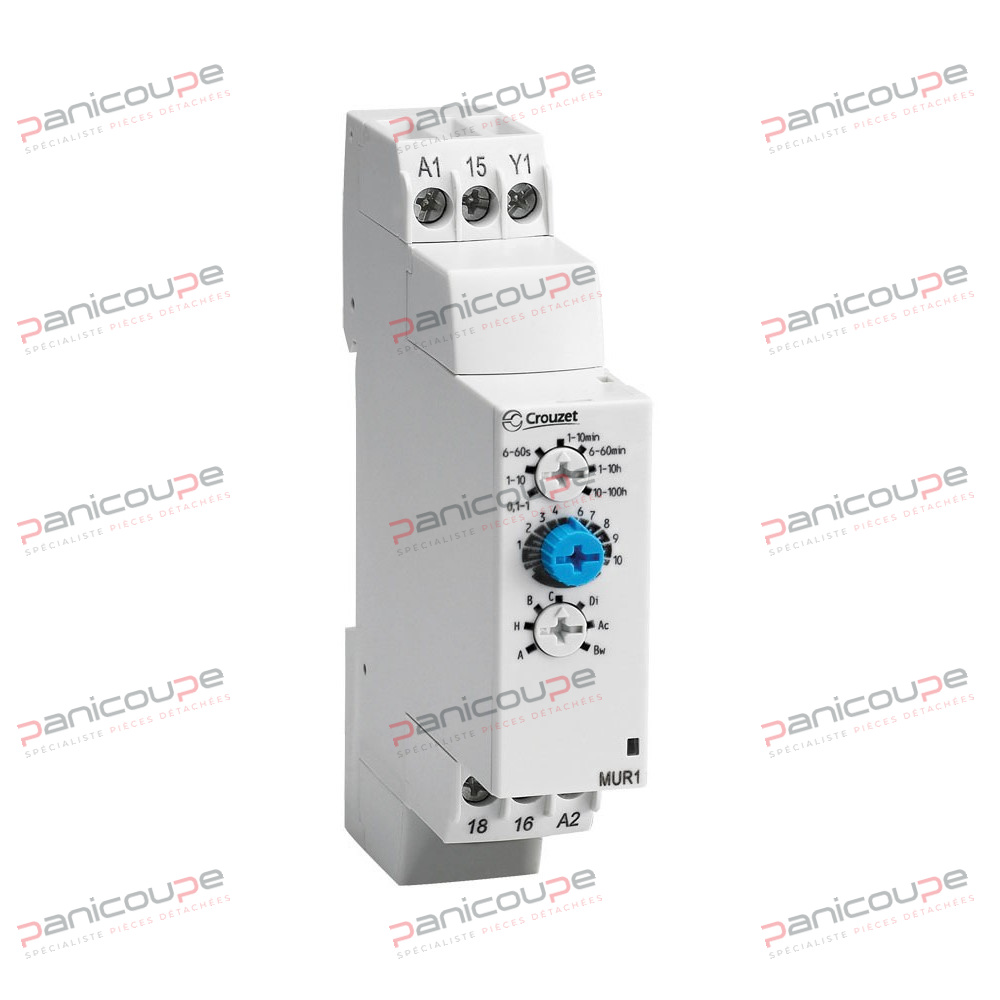

TIMER CROUZET MUR1

SKU: MUR1

You must to view prices.

Usually ships in 1 to 2 daysDetails

The versatile cabinet-mount model! Multi-range timer from 0.1 sec to 100 h. 7 ranges: (1 sec)(10 sec)(1 min)(10 min)(1 h)(10 h)(10 h). Multi-voltage: 24 V DC and 24 to 240 VAC. Multifunction: 10 timing functions (A/Ac/At/B/Bw/C/D/Di/H/Ht). Output: 1 x 8 A - 250 V time-delay changeover relay. LED indicator. DIN rail mounting. Dimensions: 90 x 60 x 17.5 mm

Technical Specifications

Nb of contacts	1
including inverters	1
Timer type	Electrical
Time range	100 h, 10 h, 10 min, 10 s, 1 h, 1 min, 1 s, 60 min, 60 s, Base 1
Timer modes	A, Ac, At, B, Bw, C, D, Di, H, Ht
Power supply	110 V, 230 V, 24 Vac, 24 Vdc
Maximum intensity	8 A
Fastening method	On track
Width	17,50 mm
Height	90 mm
Internal diameter	60 mm
Type of equipment	Rotary kiln, Ovens
Component manufacturer	CROUZET
Compatibility	PAVAILLER
