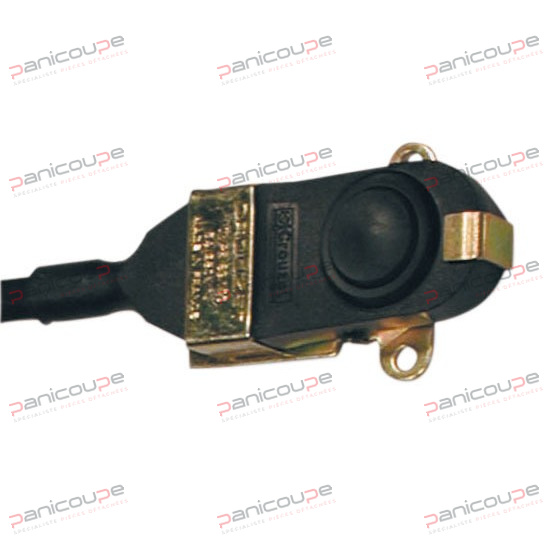

SEALED MICROSWITCH

SKU: FCET

You must to view prices.

Usually ships in 1 to 2 daysDetails

Single break in a rubber sheath. IP66. 3 x 0.75 mm² cable - 1 m long. Housing thickness 12.3 mm - Length 71 mm - Width 32 mm. Mounting via 2 side tabs with 3.2 mm holes

Technical Specifications

Nb of contacts	1
including inverters	1
Connections	Cable
A_0311150_LGCABLE	1 m
Nb of threads	3
Wire cross-section	0,75 mm²
Maximum intensity	5 A
Fastening method	Mounting brackets
Fastening hole	3,20 mm
Fixing center distance(s)	26
ø actuator	12 mm
Limit switch series	Other
Actuator type	Push button
Abrupt break	YES
Length	71 mm
Width	32 mm
Internal diameter	12,30 mm
Minimum temperature (use)	-40 °C
Max. temperature (use)	85 °C
IP protection	66
Type of equipment	Dough moulders
Component manufacturer	CROUZET
Compatibility	MARCHAND
