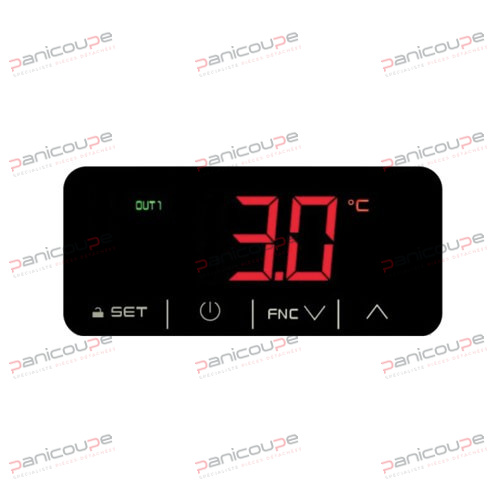

REGULATOR FOR RAPID COOLING OR FREEZING CELL

SKU: EV3802N7

You must to view prices.

Usually ships in 1 to 2 daysDetails

Four operating cycles: • Rapid cooling and time-controlled storage • Rapid cooling and temperature-controlled storage • Rapid freezing and time-controlled storage • Rapid freezing and temperature-controlled storage. Alarm buzzer included. 3-digit display. 2 PTC or NTC probe inputs (chamber and probe).

1 configurable digital input.

2 output relays (8A compressor and 8A evaporator fan or defrost). Integrated screw terminals. Side mounting brackets.

Dimensions: 75 x 33 x 59 mm. Cutout required: 71 x 29 mm.

Power supply: 230 Vac

*** Replaces part number EVK802P7 ***

Technical Specifications

Type of probe	NTC, PTC
Nb of contacts	2
including inverters	1
including NO	1
Regulator operation	Cold
Nb of probes	2
Delivered probes	Non
Entries to	Sonde à piquer
Compressor	16 A
Defrosting	8 A
Ventilation	8 A
Options	Buzzer
Ergonomics	Tactile
Power supply	230 V
Connections	Screw terminal block
Assembly cut-out	71*29 mm
Width	75 mm
Height	32 mm
Internal diameter	59 mm
IP protection	65
Component manufacturer	EVCO
Compatibility	BONGARD
