MOTOR-TURBINE R3G220

R3G220
You must to view prices.
Usually ships within 0 daysDetails

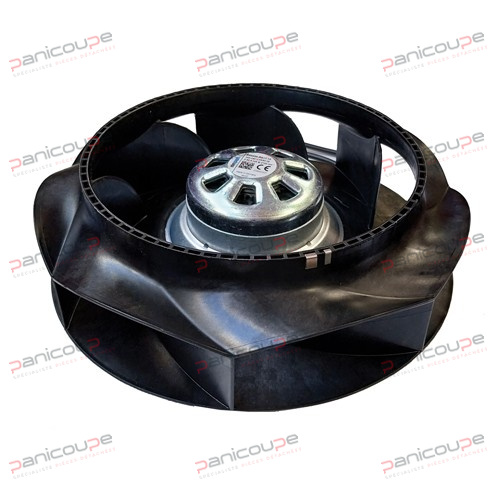

Turbine motor adaptable to Eurofours* fan-assisted ovens.

EC motor (electronically commutated, no windings)

Plastic turbine - Ø 220 mm - Height 64 mm. Mounting via 4 holes for 4 mm screws arranged in a square, spaced 42 mm apart. Voltage 220/240 V - 50/60 Hz. Power 100 W. Speed 2740 rpm.

Operating temperature -40 to +80 °C. No capacitor required. Variable speed via 0-10 VDC control.

10 VDC output, speed control, motor current limiting.

Soft start, 0-10 VDC input. Thermal protection.

3-wire power cable and 4-wire control cable.
  • Technical Specifications
RPM (50 Hz) 2740
Energy-saving motor YES
max. propeller ø (mm) 220
Permanent capacitor value (µF) 0
Power supply 230 V
Power (W) 100 W
Connections Kabel
Nb of threads 7
50 Hz YES
60 Hz YES
Fixing center distance(s) 42
Height 64 mm
Minimum temperature (use) -40 °C
Max. temperature (use) 80 °C
Material Kunststoff
Type of equipment Backofen
Compatibility EUROFOURS
