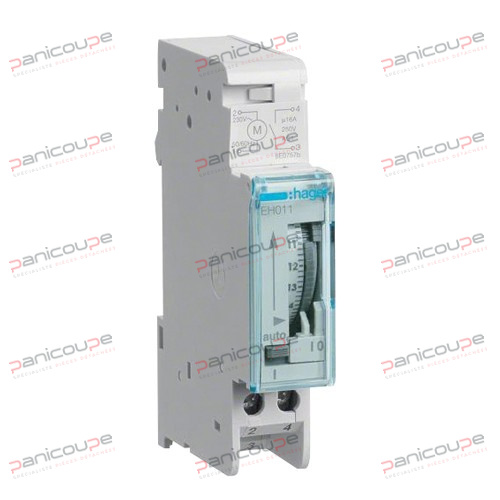

HAGER 24H CLOCKS 1 MODULE

HAGEH011
You must to view prices.
Usually ships in 1 to 2 daysDetails
Clocks with or without power reserve. Programming via captive segments. Time display via hands.

Instant manual override. DIN rail mounting for modular panels.

16A/250V changeover contact. 230Vac power supply. 200-hour power reserve.

Standard DIN rail dimensions: Width: 1 module = 18 mm

24-hour daily model with power reserve. 1 module, 96 switching operations in 15-minute increments.

Replaces part number HO10002
  • Technical Specifications
Nb of contacts 1
including inverters 1
Timer type Mechanical - Electrical
Time range 24 h
Power reserve YES
Timer modes Programmable
Forced march YES
Programming Daily, Segments
Power supply 230 V
50 Hz YES
60 Hz YES
Maximum intensity 16 A
Fastening method On track
Width 18 mm
Height 90 mm
Internal diameter 60 mm
Minimum temperature (use) -10 °C
Max. temperature (use) 55 °C
IP protection 20
