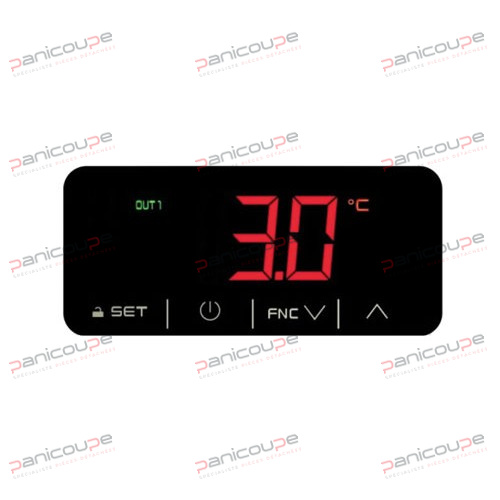

DIGITAL MILK AND ICE TANK CONTROLLER product photo

Quick View

DIGITAL MILK AND ICE TANK CONTROLLER

SKU: EV3143N7

You must to view prices.

Usually ships in 1 to 2 daysDetails

Temperature and tank agitator control, as well as ice freezer control.

• Alarm buzzer included

• 1-line LED display, 4 capacitive touch buttons

• 2 PTC/NTC probe inputs

• 1 digital input

• 3 output relays

• Fixed screw terminal connections

• Dimensions: 74 x 32 x 59 mm

• 230 Vac power supply

Replaces EVK422P7

Technical Specifications

Type of probe	NTC, PTC
Nb of contacts	3
including inverters	1
including NO	2
Regulator operation	Cold
Nb of probes	2
To	5\| 8 et 16A
Options	Buzzer
Ergonomics	Tactile
Min. temperature	-50 °C
Max. temperature	150 °C
Power supply	230 V
Connections	Screw terminal block
Assembly cut-out	71*29 mm
Width	75 mm
Height	32 mm
Internal diameter	59 mm
IP protection	65
Component manufacturer	EVCO
