BATINOX* TIBILETTI* IBT* VENTILATED OVEN MOTOR

MF4
You must to view prices.
Usually ships in 1 to 2 daysDetails

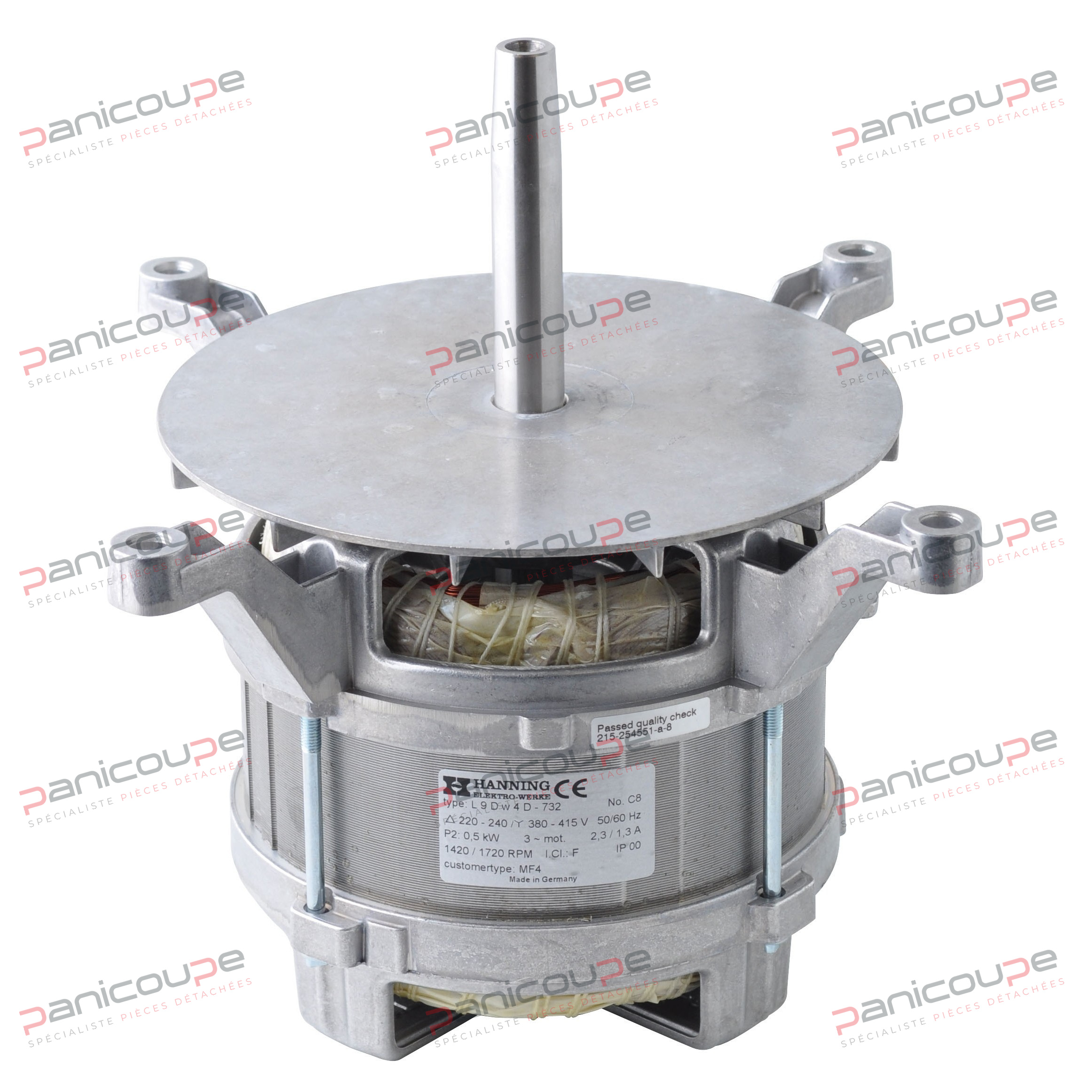

Three-phase turbine motor adaptable to Batinox* Tibiletti* IBT* fan-assisted ovens. Technical specifications: Three-phase power supply 220-240 V/380-415 V - 50/60 Hz. Power 500 W - speed 1420/1720 rpm, reversible rotation - IP00. Bearings lubricated with high-temperature grease. Motor wired with a 9-pin connector.
  • Technical Specifications
RPM (50 Hz) 1420
RPM (60 Hz) 1720
Power output 500 W
Direction of rotation Reversible
Conical shaft YES
Tree ø16|95*85 mm
Tree tip Taraudage M6*16
Specific application Oven turbine
Power supply 230-400 V, 400 V
Power (W) 500 W
Connections 9-pin connector
Nb of threads 7
50 Hz YES
60 Hz YES
Fastening method Smooth hole(s)
Fastening hole 9,50 mm
Fixing center distance(s) 250
No. of gears 1
Internal diameter 153,50 mm
Ø outside 270 mm
Type of equipment Ovens, Ventilated oven
Component manufacturer HANNING
Compatibility BATINOX, TIBILETTI
